Chemical Reactor

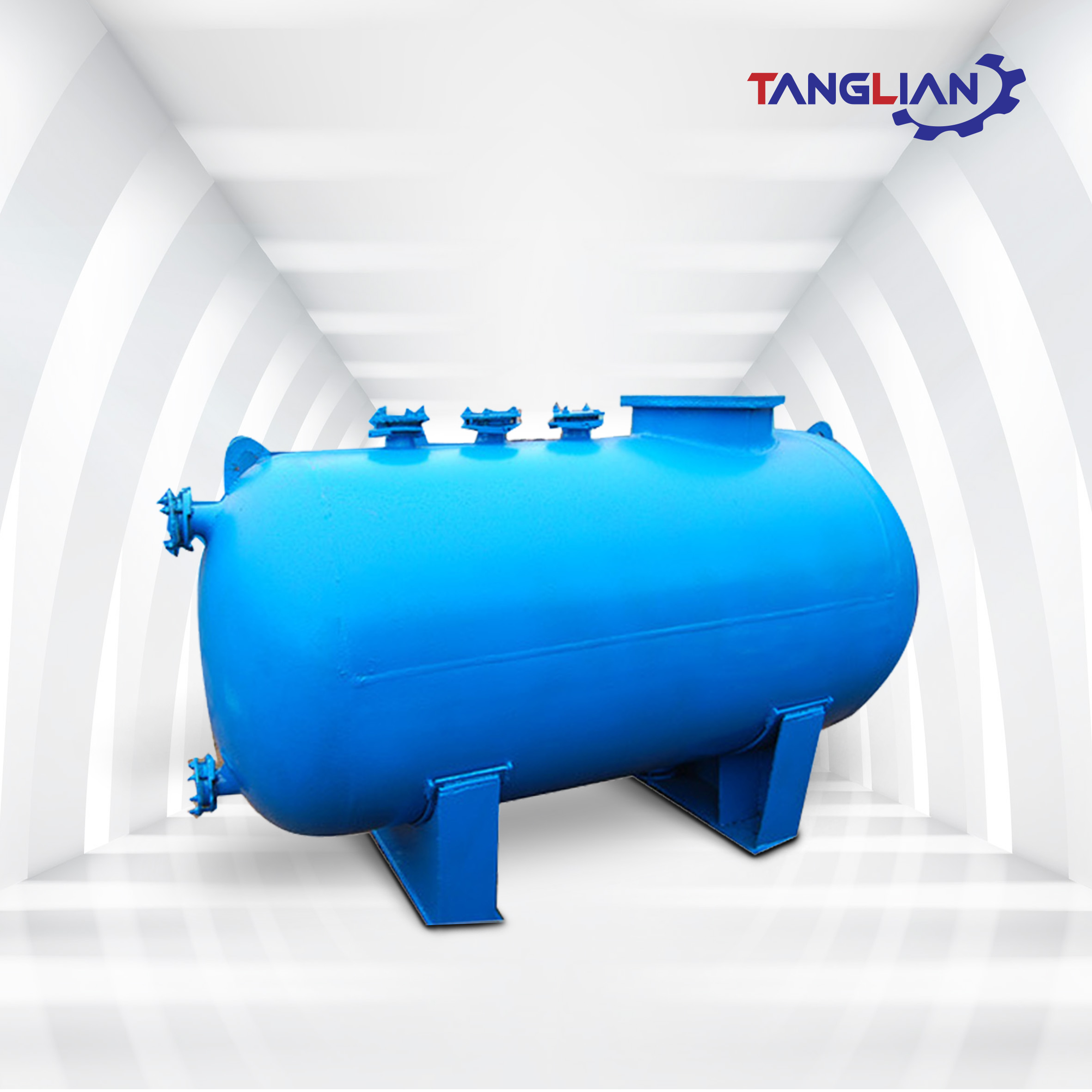

glass lined batch reactor

Product ID： 003
size： 5000L
Material Science： Glass lined
INQUIRY

Corrosion proof glass lined reacotrs|kettles

Organic or inorganic solvent and weak alkaline and acid corrosion can be endured except hydrofluoric acid , media containing fluorine-ion, oil of vitriol and alkali with their density over 30% and temperature higher than 180℃.

Reactor outline dimension and parameters table

Model		F3000	F5000	F6300	F8000	F10000	F12500	F16000	F20000	F30000
Nominal Capacity		3000	5000	6300	8000	10000	12500	16000	20000	30000
Actual Capacity		3800	6010	6866	9060	11670	13651	17446	21790	33500
Heat Exchange Area		9.74	14.89	19.89	18.38	21.35	24.86	29.48	34.04	45.36
Dimension MM	D1	1600	1750	1750	2000	2200	2200	2400	2600	3000
	D2	1750	1900	1900	2200	2400	2400	2600	2800	3200
	D3	2045	2196	2196	2502	2734	2708	2912	-	-
	H1	150	150	150	197	197	197	197	210	210
	H2	2210	2856	3246	3310	3533	4053	4346	4641	5340
	H3	1200	1200	1200	1200	1300	1300	1400	-	-
	H4	1316	1316	1316	1542	1880	1880	1880	1880	2200
	HO	-	-	-	-	-	-	-	7326	8500
Type		BLD-3	BLD-4	BLD-4	BLD-4	BLD-5	BLD-5	BLD-6	BLD-6	BLD-7
Speed of Agitators r/min	Paddle Type	130	130	130	130	130	130	130	130	130
Speed of Agitators r/min	Turbine Type	130	130	130	130	130	130	130	130	130
Glass-lined nozzle	a	300x400	300x400	300x400	300x400	300x400	300x400	300x400	450	450
	b	150	150	150	150	200	200	200	250	250
	c	100	125	125	150	150	150	150	150	150
	d	100	125	125	150	150	150	150	150	150
	e	125/灯	125/灯	125/灯	125/灯	125/灯	125/灯	125/灯	125/灯	125/灯
	f	125	150	150	150	150	150	150	150	150
	g	100	125	125	150	150	150	150	150	150
	h	125	150	150	150	150	150	150	150	150
	k	125	125	125	150	200	200	200	200	200
	m	-	-	-		150	150	125	125	125
Jecket nozzle	Outlet	125	125	125	125	125	150	150	150	150
Jecket nozzle	Inlet(outlet)	5-65	3-65	6-65	4-65	4-80	4-80	4-100	4-100	4-100
Kg Reference Weight		3558	4846	5332	7526	8733	10145	11771	14170	20210

Notes:The above parrmeters conform to standard HG5-251-79

Shandong Tanglian and Zibo Reliable company manufacture varies of chemical equipment : glass lined reactor, stainless steel reactor, storage tank and heat exchanger.
