AE glass lined reactor for laboratory

Product ID： 004
size： 5000L
Material Science： Glass lined
INQUIRY

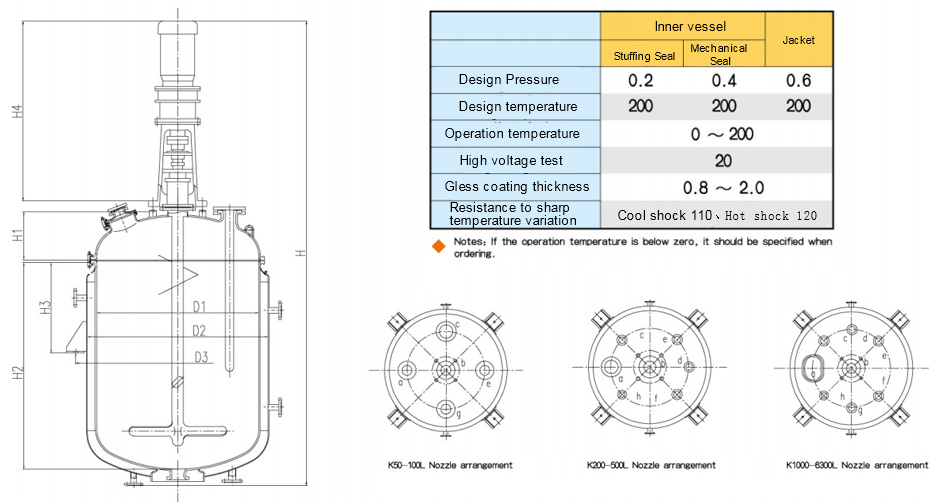

Reactor outline dimension and parameters table

Model		K-50	K-100	K-200	K-300	K-500	K -1000	K- 1500	K- 2000	K- 3000	K- 5000	K- 6300
Nominal Capacity		50	100	200	300	500	1000	1500	2000	3000	5000	6300
Actual Capacity		71	128	247	369	588	1250	1720	2160	3380	5224	6735
Heat Exchange Area		0.34	0.66	1.26	1.75	2.64	4.54	5.34	7.02	8.61	13	16.4
Dimension MM	D1	500	600	700	800	900	1200	1300	1300	1600	1750	1750
	D2	600	700	800	900	1000	1300	1450	1450	1750	1900	1900
	D3	706	816	918	1028	1130	1468	1622	1622	1964	2152	2152
	H1	265	300	345	380	405	480	505	505	580	617	617
	H2	400	500	700	800	1000	1200	1400	1745	1740	2050	2997
	H3	300	320	350	350	400	500	500	500	600	670	700
	H4	945	945	953	1154	1154	1276	1276	1276	1326	1326	1475
	H	1705	1845	2110	2440	2700	3000	3310	3650	3785	4800	5580
Type		BLD-1	BLD-1	BLD-1	BLD-2	BLD-2	BLD -2	BLD- 3	BLD- 3	BLD- 3	BLD- 4	BLD- 4
Type of Agitators r/min	Frame(Anchor) Type	63/85	63/85	63/85	63/85	63/85	63/85	63/85	63/85	63/85	63/85	63/85
Type of Agitators r/min	Turbine Type	130	130	130	130	130	130	130	130	130	130	130
Glass-lined nozzle	a	80/视	80/视	125	125	150	300x400	300x400	300x400	300x400	300x400	300x400
	b	70	70	80	100	100	125	125	125	125	125	125
	c	70	70	70	70	70	100	100	100	100	125	125
	d			80	80	100	100	100	100	100	125	125
	e	70/灯	70/灯	70/灯	70/灯	80/灯	100/灯	125/灯	125/灯	125/灯	125/灯	125/灯
	f			70	70	125	125	125	125	125	150	150
	g	70	70			100	100	100	100	100	125	125
	h			70/视	70/视	8/视	100/视	125	125	125	150	150
	Outlet	70	70	80	80	80	100	100	100	125	125	125
Jecket nozzle	Inlet(outlet)	3-20	3-20	3-25	3-25	3-32	3-32	4-50	4-40	3-50	3-65	4-65
Jecket nozzle	Spary mouth								2-50	2-65	3-65
Kg Reference Weight		463	530	700	984	1213	1909	2441	2693	4060	5186	5844

Notes:The above parrmeters conform to standard HG5-251-79

Shandong Tanglian and Zibo Reliable company manufacture varies of chemical equipment : glass lined reactor, stainless steel reactor, storage tank and heat exchanger.
