Structure of glass lined reactor AE type

Glass lined distillation tank (i.e. porcelain lined distillation kettle) is a glass lined equipment for distillation of materials, the volume is generally in K300L-K6000L, used together with glass lined distillation tower to achieve the purpose of distillation.

The structure of glass lined distillation tank and glass lined reactor body cover combination is basically the same, the tank part with jacket to pass into the heating or cooling medium, there is no stirring system, the pipe mouth on the cover is not the same, the middle of which is the distillation large mouth, and equipped with temperature casing mouth, each filling mouth, sight glass mouth, etc., generally configured with glass lined temperature casing, the bottom is equipped with glass lined discharge valve, etc.

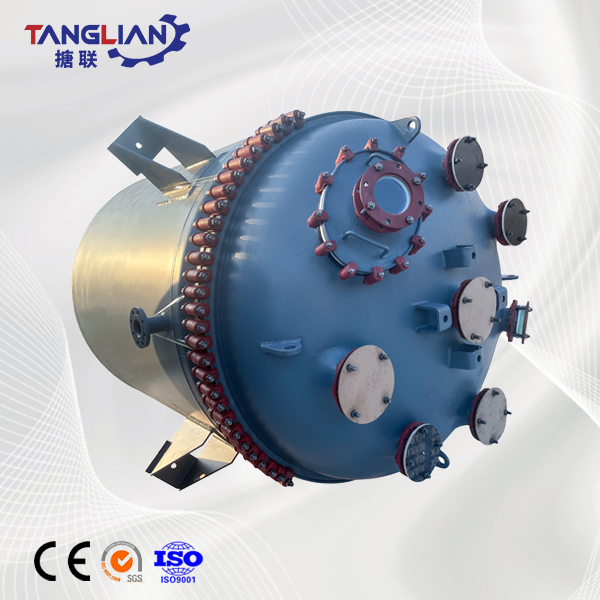

Glass lined distillation kettle is generally made into open structure, that is, the middle of the body cover monomer is connected with pad and card, its price is close to the body cover combination of the same volume of glass lined open reactor, customers must specify the use of media, working temperature and working pressure and distillation required to achieve the requirements, and whether the need to configure glass lined distillation tower and packing.

Glass lined reactor AE type, generally equipped with glass lined distillation tower, the height of the tower is determined by the process requirements of the user, the top of the tower with a tower cap, the tower is equipped with the filler required by the process; through the jacket circulation steam, water, heat transfer oil and other heating media, so that the logistics in the tank rises to the boiling state, the overflow of gas through the middle distillation port into the distillation tower for distillation. Its temperature and the use of media in line with the general scope of application of glass-lined equipment, working pressure is generally controlled between 4 kg - 6 kg, such as special requirements, please specify in advance.
