PTFE Lined Storage Tank

K Type Vertical Teflon / PTFE Lined Storage Tank

INQUIRY

PTFE Lined Receiving Tank Introduction

PTFE Lined Receiving Tank are used to store various liquid or gaseous chemical substances such as acids, alkalis, organic solvents, etc. The inner surface of the steel shell is lined with PTFE sheets to avoid corrosion, effectively solving the three major challenges of cleanliness, temperature, and corrosion resistance in the chemical industry. It is not limited by manufacturing equipment, has good permeability resistance, smooth and bright surface, low friction coefficient, is not easy to scale, and has a long service life.

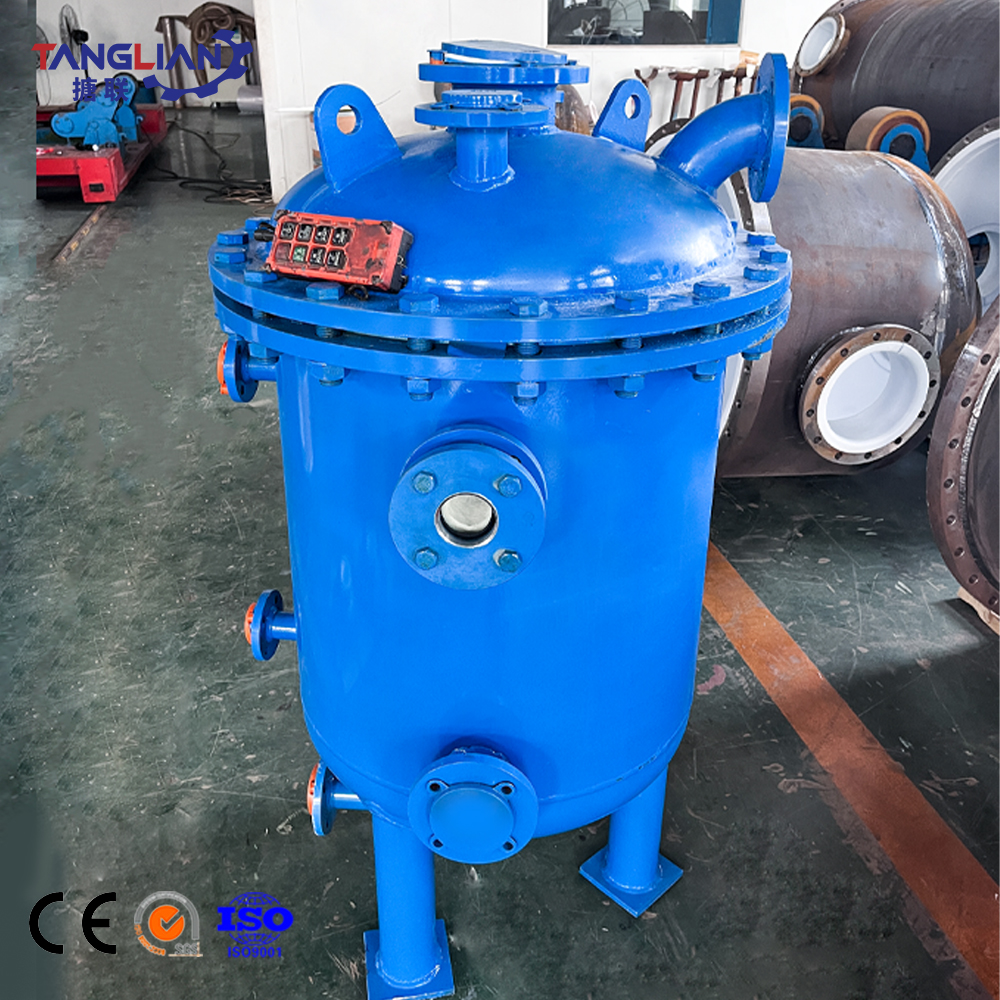

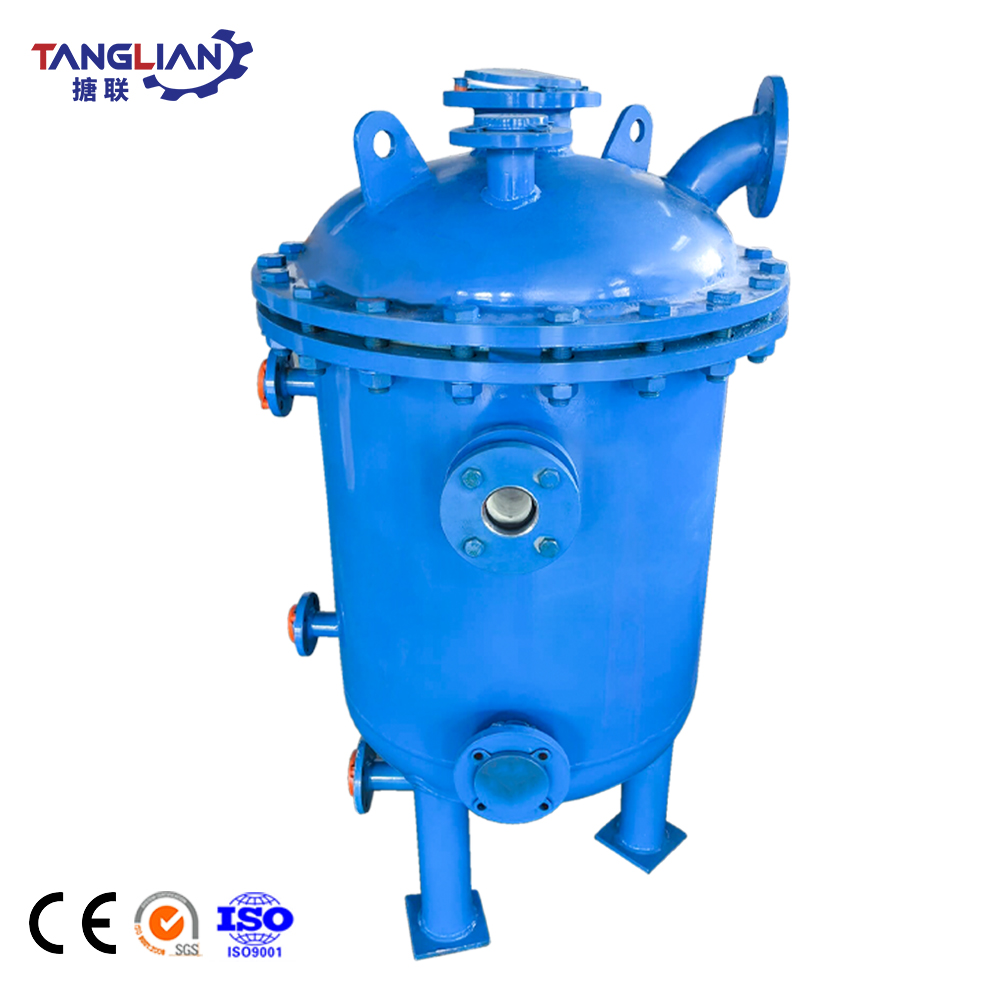

PTFE lined storage tank

PTFE Lined Receiving Tank Type: vertical tank, horizontal tank

Tank shell: carbon steel, stainless steel 304, 316L, titanium alloy Ti, duplex stainless steel 2205

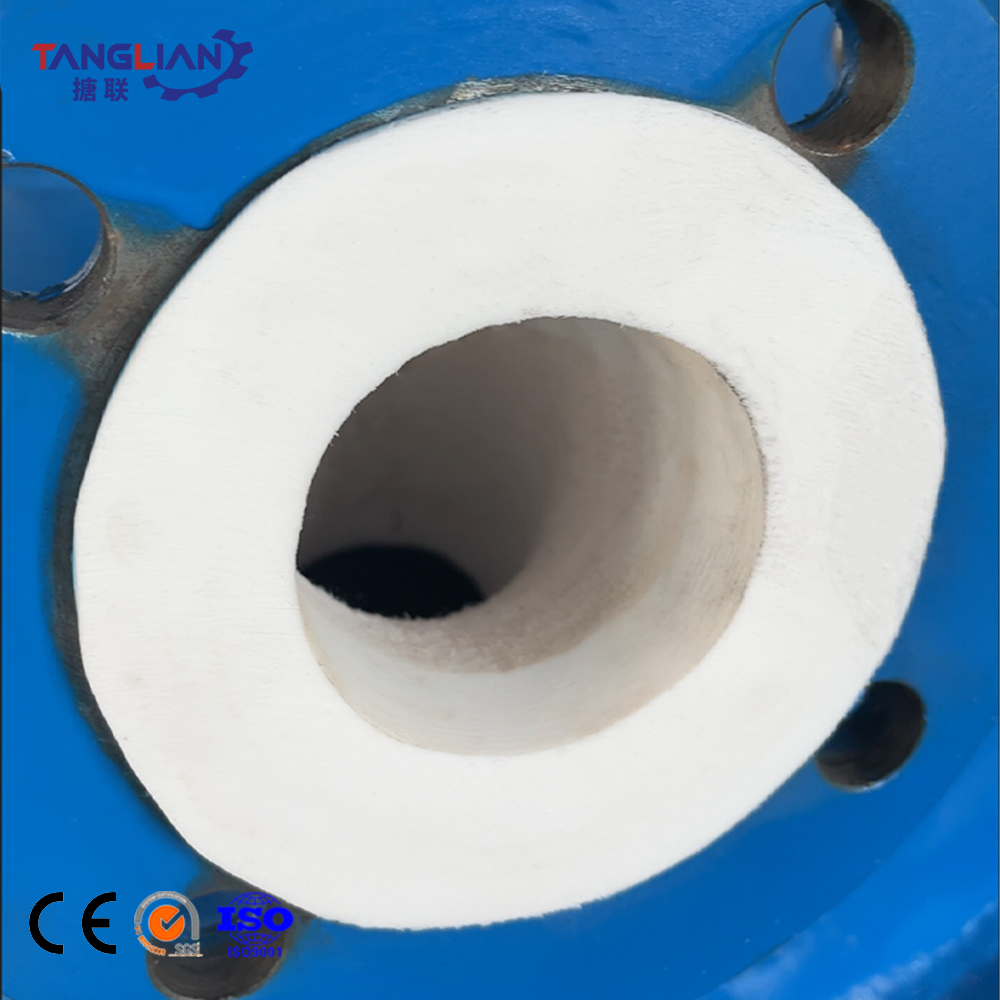

Inner lining materials: ECTFE (F30), ETFE (F40), FEP, PFA, PTFE

Sealing gasket: PTFE, rubber wrapped PTFE

Fasteners: galvanized bolts, stainless steel bolts, fluorine lined bolts

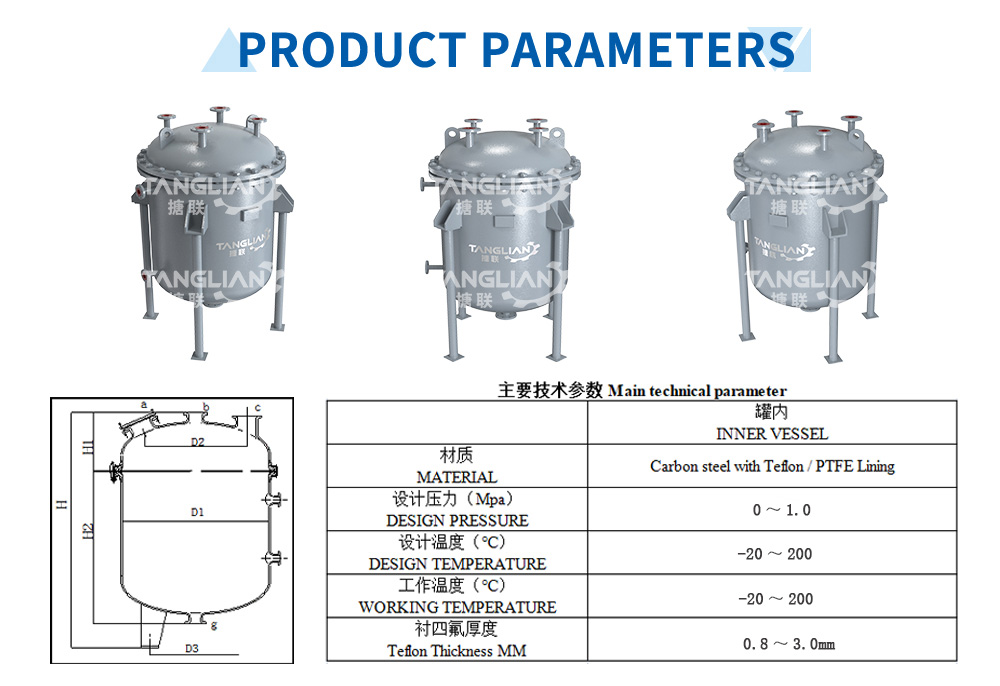

Technical Parameters

	INNER VESSE
MATERIAL	Carbon Steel with Teflon / ECTFE / ETFE /PFA Lining
DESIGN PRESSURE（Mpa）	0 ～ 1.0
WORKING TEMPERATURE（℃）	-20～200
THICKNESS（mm）	0.8-3.0

PTFE Lined Storage Tank Advantages

PTFE Lined Receiving Tank Features: Corrosion resistance, no scaling, less prone to microbial growth, and ensuring the purity of the internal solution medium

Applicable media: Various concentrations of inorganic acids, organic acids, organic solvents, and weakly alkaline solvents

Scope of application: Widely used in industries such as chemical engineering, metallurgy, electronics, environmental protection, brewing, pharmaceuticals, storage and transportation.
