Vertical F Type Enamel Tank Introduction

F Type enamel tank (also called Glass Lined Storage Tank), is a kind of glass lined equipment for storing acid, alcohol, gas and other dangerous raw materials, divided into horizontal glass lined storage tank, vertical open type glass lined storage tank (i.e. K type enamel tank), vertical closed type glass lined storage tank (i.e. F type enamel tank), used as vacuum, can be configured with jacket for heating and insulation of the corresponding raw materials, used in petroleum, chemical, grain and oil, food, fire fighting, transportation, metallurgy and other industries.

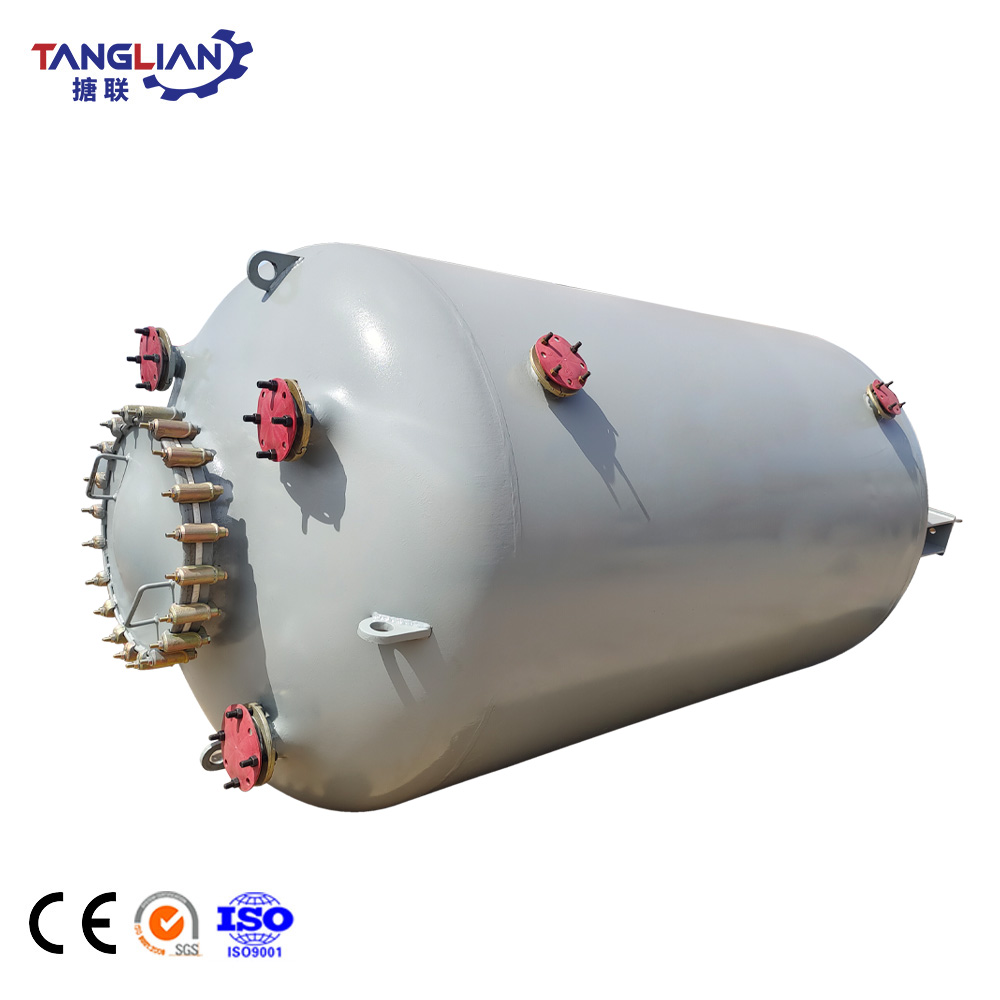

Vertical F Type Glass Lined Storage Tank

Technical Parameters

	Specification
MATERIAL	Carbon Steel with Glass Linning
DESIGN PRESSURE（Mpa）	Atmospheric pressure
DESIGN TEMPERATURE（℃）	-19 / 200
GLASS LINED THICKNESS（mm）	0.8-2.0

Vertical F Type Glass Lined Storage Tank

Main Dimensions of Vertical F Type Enamel Tank (3000-50000L)

NOMINAL VOLUME (L)	ACTUAL VOLUME (L)	D (mm)	D1 (mm)	D2 (mm)	H (mm)	H1 (mm)	H2 (mm)	PN 0.25 Mpa	PN 0.6 Mpa	WEIGHT (Kg)
F3000	3740	1600	600	1120	2740	300	2290	BM12/24	AM12/24	1700
F5000	5980	1600	600	1120	3710	300	3260	BM12/28	AM12/36	2000
F6300	7030	1750	600	1225	3810	300	3280	BM12/28	AM12/36	2500
F8000	8910	1900	600	1330	4110	300	3530	BM12/28	AM12/36	3200
F10000	11140	2200	700	1540	4020	345	3370	BM12/36	AM12/32	3800
F12500	13870	2400	700	1680	4180	345	3530	BM12/36	AM12/32	4700
F16000	17760	2400	700	1680	5040	345	4390	BM12/36	AM12/32	5700
F20000	22217	2600	700	1820	5369	345	4789	BM12/36	AM12/32	6700
F30000	33301	3000	700	2100	5995	345	5415	BM12/36	AM12/32	8300
F50000	51366	3000	700	2100	8565	345	7985	BM12/36	AM12/32	9900

Nozzle Size of Vertical F Type Enamel Tank (3000-50000L)

NOMINAL VOLUME(L)	a	b	c	d	g	h
3000	125	70	70	70	125	-
5000	125	70	70	70	125	-
6300	125	70	70	70	125	-
8000	125	70	70	70	125	-
10000	125	80	70	70	125	-
12500	125	80	70	70	125	-
16000	125	80	70	70	125	-
20000	125	80	70	70	125	-
30000	125	80	70	70	125	-
50000	125	80	70	70	125	-

Process Flow

glass line reactor.jpg

Vertical F Type Enamel Tank Advantages

Vertical F type enamel tank is a one-piece structure, the lid and the tank body can not be separated, the standard models are F3000L, F5000L, F6300L, F8000L, F10000L, F12500L, F16000L, F20000L, F30000L, F50000L. (Processing according to the drawing of the user)
