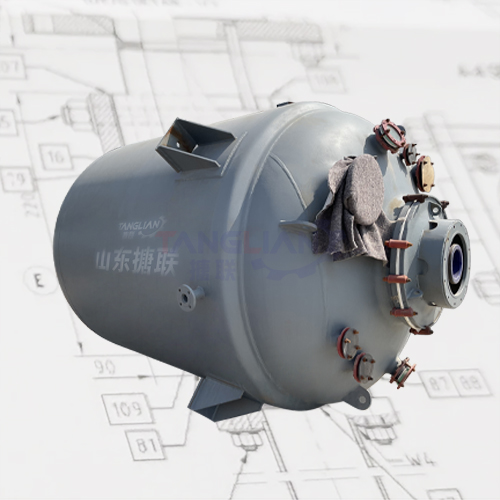

Glass Lined Agitator Reaction Vessel Introduction

CE type Glass Lined Agitator Reaction Vessel is a glass rich in silica, lined in the inner surface of the steel vessel, by high temperature burning and firmly dense on the metal surface to become a composite product. Therefore, it has the double advantages of glass stability and metal strength, and is an excellent corrosion-resistant equipment. Closed type reactor is one body and cover, the sealing performance should be good, meanwhile, the stirring paddle in the closed type Glass Lined Agitator Reaction Vessel of the same volume is not as big as the stirring paddle in the open type reactor due to the limitation of installation size.

Technical Parameters

	INNER VESSE	JACKET
MATERIAL	Carbon Steel with Glass Linning	Carbon Steel
DESIGN PRESSURE（Mpa）	-0.1 / 0.6	0 / 0.6
DESIGN TEMPERATURE（℃）	-19 / 200	-19 / 200
WORKING TEMPERATURE（℃）	-19 / 200
GLASS LINED THICKNESS（mm）	0.8-2.0
RESISTANCE TO SHARP TEMPERATURE VARIATION（℃）	COOL SHOCK 110，HOT SHOCK 120

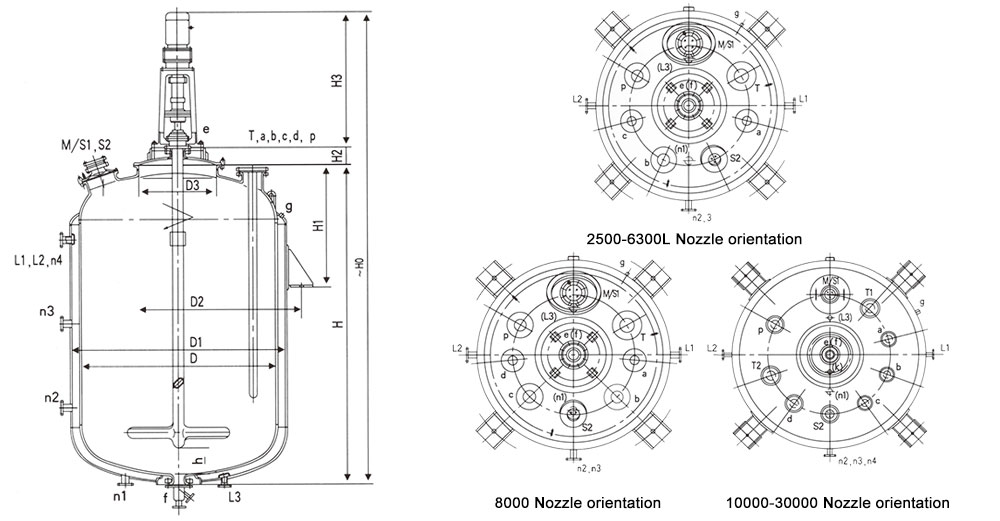

Main Dimensions of CE type Glass Lined Reactor (2500-30000L)

NOMINAL VOLUME (L)	ACTUAL VOLUME (L)	HEAT EXCHANGE AREA(m2)	POWER (Kw)	D (mm)	D1 (mm)	D2 (mm)	D3 (mm)	H (mm)	H1 (mm)	H2 (mm)	H3 (mm)	H0 (mm)	WEIGHT (Kg)
2500	3385	8.68	4	1600	1750	1981	600	2105	1050	195	1276	3937	3100
3000	3811	8.61	5.5	1600	1750	1964	600	2295	1050	195	1316	4300	3554
5000	5905	13.16	5.5	1750	1900	2170	600	2940	1200	195	1316	5000	5160
6300	6866	16	7.5	1750	1900	2196	600	3319	1200	195	1475	5200	5252
8000	9060	18.38	7.5	2000	2200	2502	800	3385	1200	200	1545	5360	6430
10000	11674	21.35	11	2200	2400	2734	800	3608	1300	200	1770	5810	8250
12500	13651	24.89	15	2200	2400	2734	800	4128	1300	200	1770	6330	9780
16000	17463	29.48	18.5	2400	2600	-	800	4421	-	200	1865	6718	11440
20000	21790	34.03	18.5	2600	2800	-	900	4716	-	210	1865	7026	13220
30000	32520	43.85	22	3000	3200	-	900	5356	-	210	2025	7816	20500

Nozzle Size of CE type Glass Lined Reactor (2500-30000L)

NOMINAL VOLUME(L)	M	S1,S2	P	T1	a	b	c	d	e	f	n1-2	n3	L1.2.3
2500	300×400	125	100	70	125	125	100	-	125	125	65	-	50
3000	300×400	125	100	70	125	125	100	-	125	125	65	-	65
5000	300×400	125	125	70	125	150	150	-	125	125	65	65	65
6300	300×400	125	125	70	125	150	150	-	150	125	65	65	65
8000	300×400	125	125	70	150	150	150	150	150	125	65	65	65
10000	300×400	125	125	100	150	150	150	150	200	150	80	80	80
12500	300×400	125	125	100	150	150	150	150	200	150	80	80	80
16000	450	125	125	100	150	150	150	150	200	150	100	100	100
20000	450	125	125	100	150	150	150	150	250	150	100	100	100
30000	450	125	125	100	150	150	150	150	250	150	100	100	100

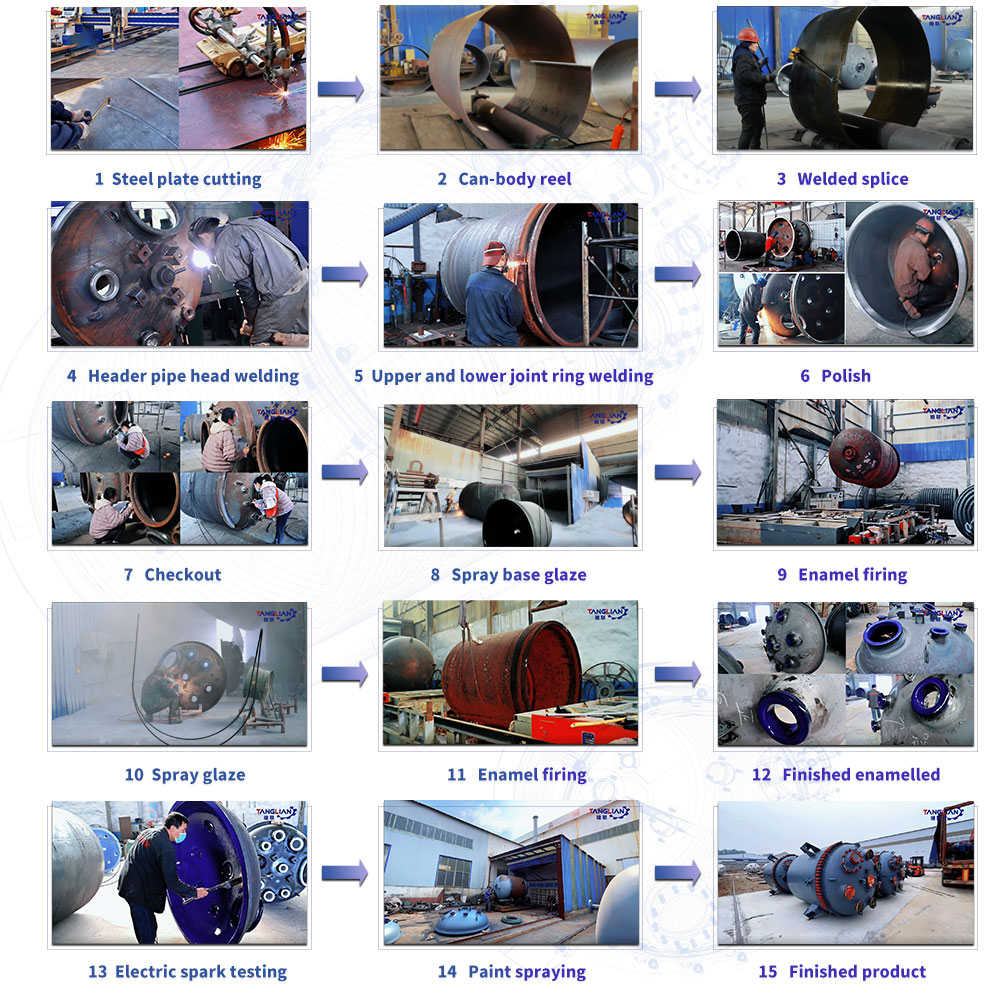

Process Flow

glass line reactor.jpg

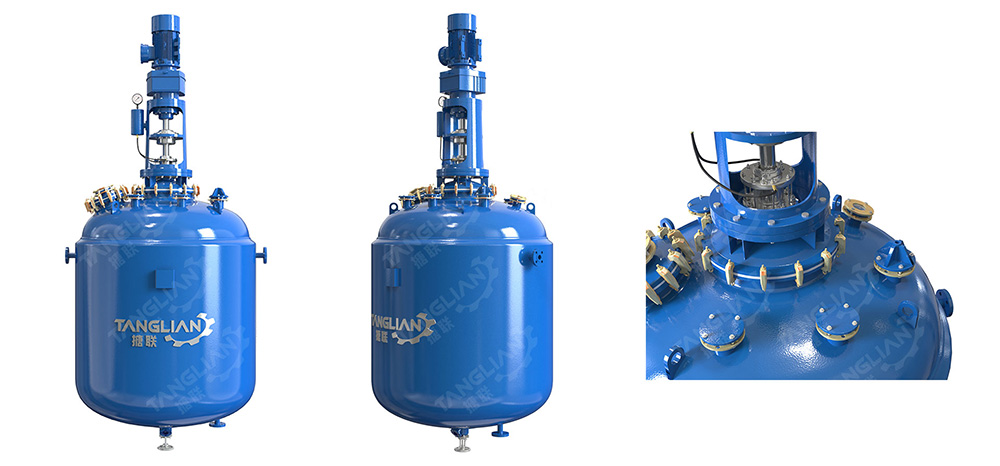

Acid Resistance Glass Lined Reactor Advantages

● Acid Resistance Glass Lined Reactor Used for small, medium and large scale chemical and pharmaceutical production.

● The lid cannot be separated from the tank, which is suitable for the environment with high pressure in the kettle and can avoid or reduce the leakage.

● After removing rust on the surface of reaction kettle, it is sprayed with environmental protection water-based paint, which makes the product more beautiful and environmental friendly.

● Comply with ASTM, ASME, CE, CN standards

● Various non-standard capacities can be designed and customized according to customers' requirements.
