Hydration reactor project primary reactor Introduction

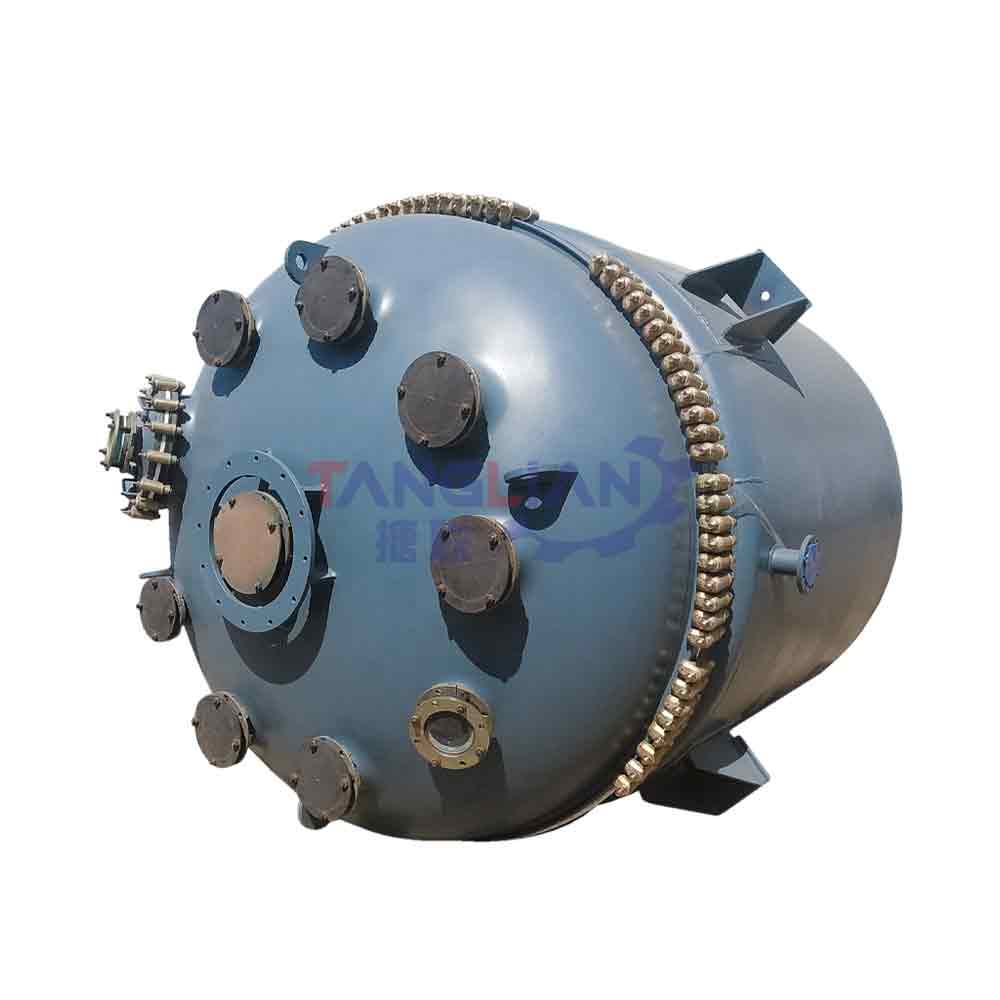

AE type Hydration reactor project primary reactor is a porcelain enamel rich in silica, lined on the inner surface of the steel vessel, and become a composite product by high temperature firing and firmly dense on the metal surface. Therefore, it has the double advantages of stability of glass and strength of metal, and is an excellent corrosion-resistant equipment. The AE type Hydration reactor project primary reactor in chemical plant is separated by body and cover, and connected by gasket and tank card in the middle, so it is easy to disassemble the open type, and if there is a problem with the pipe opening on the cover, it is easy to remove and repair separately.

Technical Parameters

	INNER VESSE	JACKET
MATERIAL	Carbon Steel with Glass Linning	Carbon Steel
DESIGN PRESSURE（Mpa）	-0.1 / 0.6	0 / 0.6
DESIGN TEMPERATURE（℃）	-19 / 200	-19 / 200
WORKING TEMPERATURE（℃）	-19 / 200
GLASS LINED THICKNESS（mm）	0.8-2.0
RESISTANCE TO SHARP TEMPERATURE VARIATION（℃）	COOL SHOCK 110，HOT SHOCK 120

glass lined reactor

Main Dimensions (6300-12500L)

NOMINAL VOLUME (L)	ACTUAL VOLUME (L)	HEAT EXCHANGE AREA(m2)	POWER (Kw)	D (mm)	D1 (mm)	D2 (mm)	D3 (mm)	H (mm)	H1 (mm)	H2 (mm)	H3 (mm)	H0 (mm)	WEIGHT (Kg)
6300	6493	15.8	7.5	1750	1900	2152	450	2925	700	620	1395	5027	5690
8000	8450	18.3	11.0	2000	2200	2457	500	2935	800	705	1545	5225	7576
10000	10520	21.15	11.0	2000	2400	2708	550	3040	900	755	1770	5588	9013
12500	13040	25.79	15.0	2000	2400	2708	550	3680	900	755	1770	6730	10920

Nozzle Size (6300-12500L)

NOMINAL VOLUME(L)	M	H	e	T1	S1	a	b	c	d	f	n1-2	n3	L1-2
6300	300×400	-	125	125	125	125	150	125	125	125	65	65	70
8000	300×400	-	150	125	125	150	150	150	150	125	65	65	70
10000	300×400	-	200	150	125	150	150	150	150	150	80	80	80
12500	300×400	-	200	150	125	150	150	150	150	150	80	80	80

Glass Lined Reactor Process Flow

glass line reactor.jpg

Advantages

● For small, medium and small scale chemical and pharmaceutical production.

● The lid can be separated from the tank, and a variety of stirrer types can meet the different process needs of users.

● After removing rust on the surface of the chemical reactor, spraying environmental protection water-based paint makes the product more beautiful and environmental friendly.

● Comply with ASTM, ASME, CE, CN standards

● Various non-standard capacities can be designed and customized according to customers' requirements.
