Glass Lined Agitator For Chemical Use

INQUIRY

Glass Lined Agitator For Chemical Use Introduction

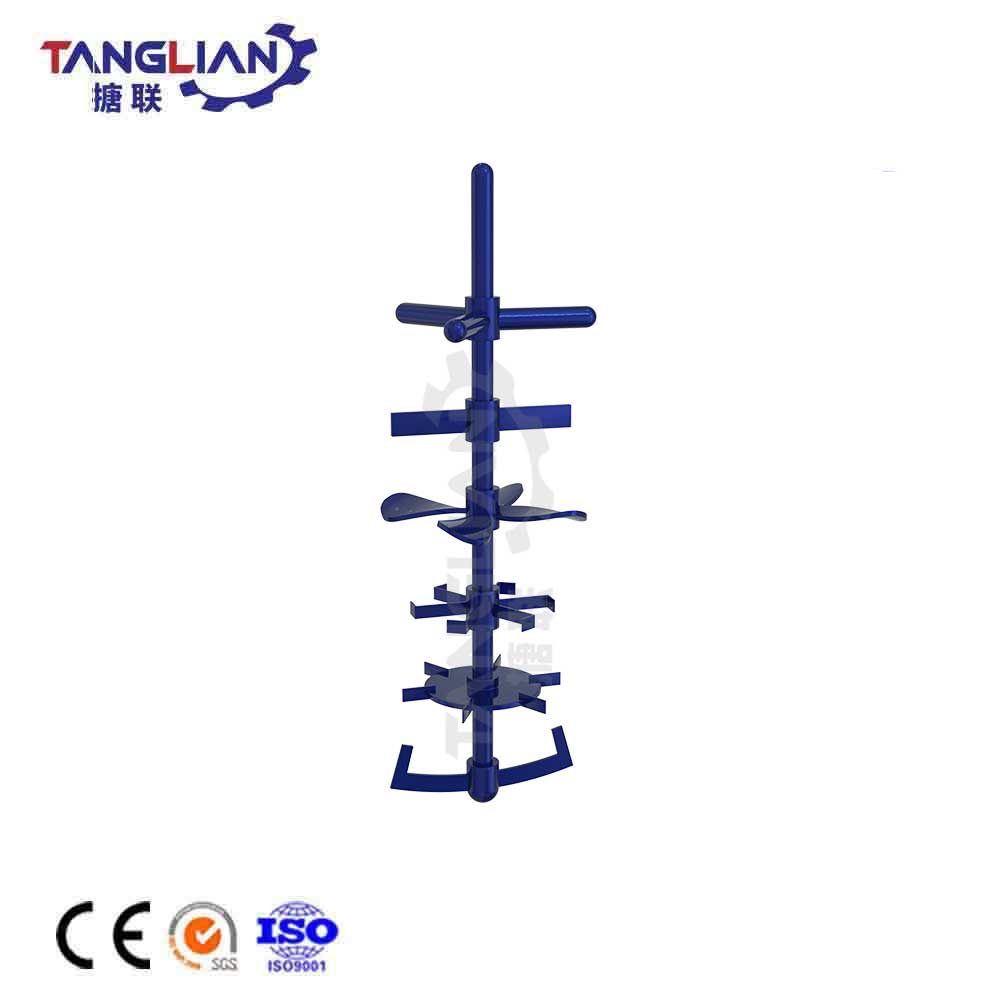

The Glass Lined Agitator For Chemical Use forms of reaction kettle generally include anchor type, paddle type, turbine type, propulsion type, or frame type. When the height to diameter ratio of the stirring device is large, multi-layer stirring blades can be used, and can also be selected according to user requirements.

Glass Lined Agitate

Glass Lined Agitator For Chemical Use type

1. According to the classification of mixing blade structure, mixers can be divided into flat blade, inclined (folded) blade, curved blade, and spiral surface blade type mixers. Both paddle and turbine agitators have flat and inclined blade structures; The propelling, screw, and spiral belt type blades are of helical surface blade structure. According to installation requirements, it can be divided into integral and split structures. For large mixers, they are often made into split structures for easy installation and fixation.

2. It is divided into low viscosity fluid and high viscosity fluid according to its purpose. The types of agitators used for low viscosity fluids include: propulsion type, slurry type, open turbine type (flat blade, inclined blade, curved blade), disc turbine type (flat blade, inclined blade, curved blade), Brumakin type, plate frame paddle type, three blade rear curved type, MIG, and improved MIG. The types of agitators used for high viscosity fluids include anchor type, frame type, serrated disc type, propeller type, screw belt type, etc.

3. Glass Lined Agitator For Chemical Use can be divided into axial flow and radial flow patterns according to the flow pattern of the fluid. Some agitators produce both axial and radial flow during operation, which is called a mixed flow pattern. Propulsion type is representative of axial flow pattern, straight bladed disc turbine is representative of radial flow pattern, and oblique bladed turbine is representative of mixed flow pattern.

Glass Lined Agitate
