Stainless Steel Reactor

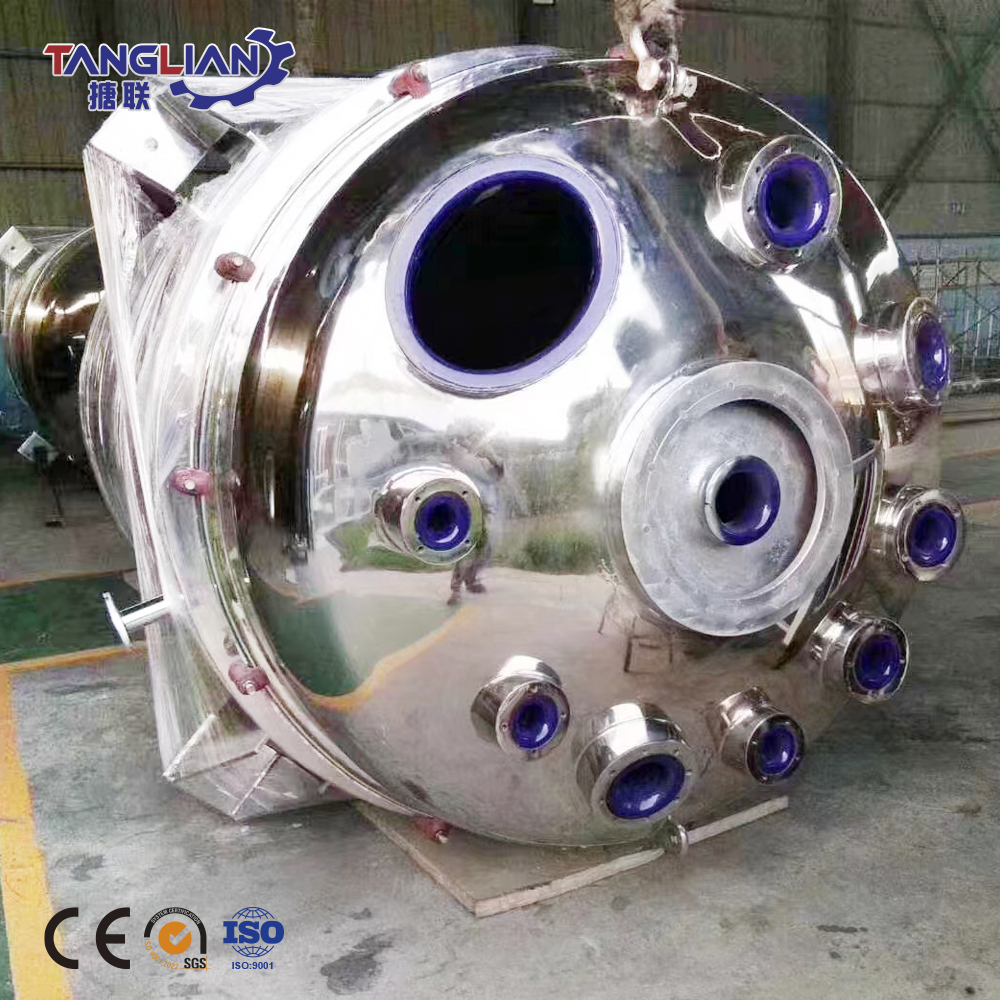

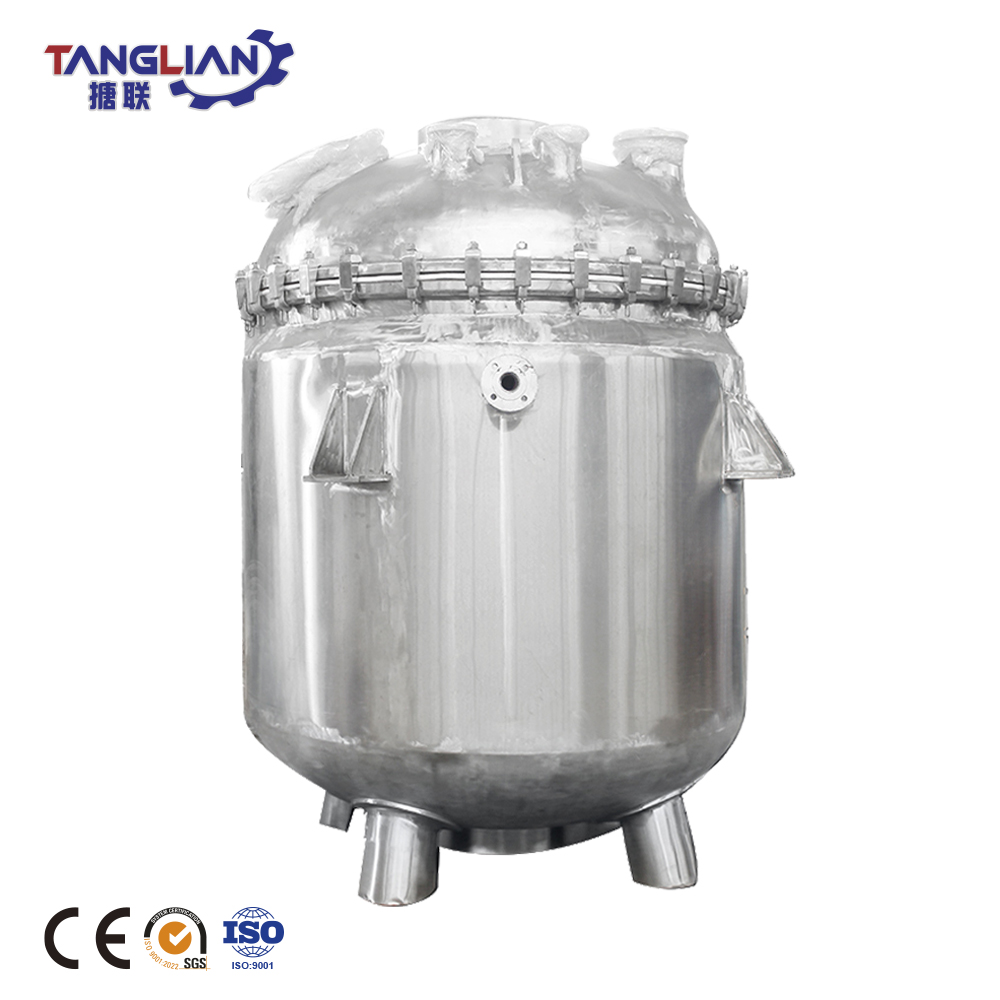

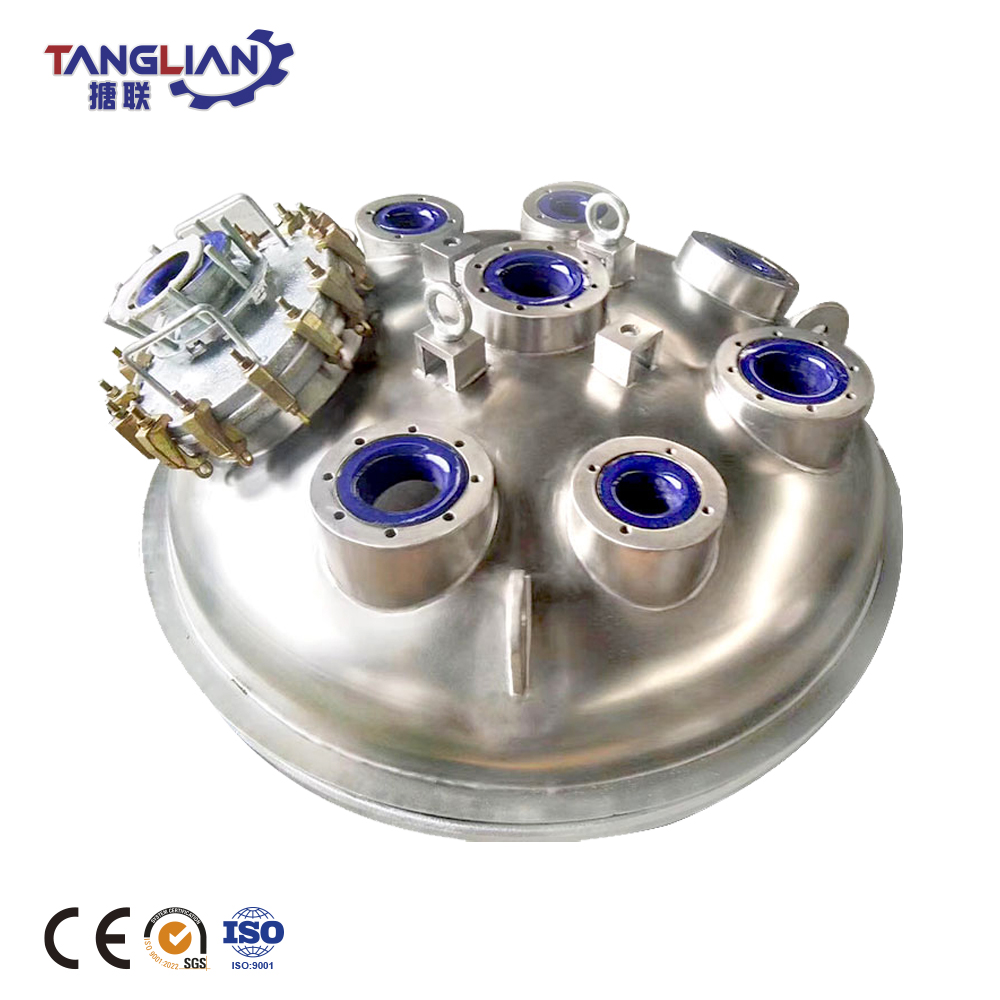

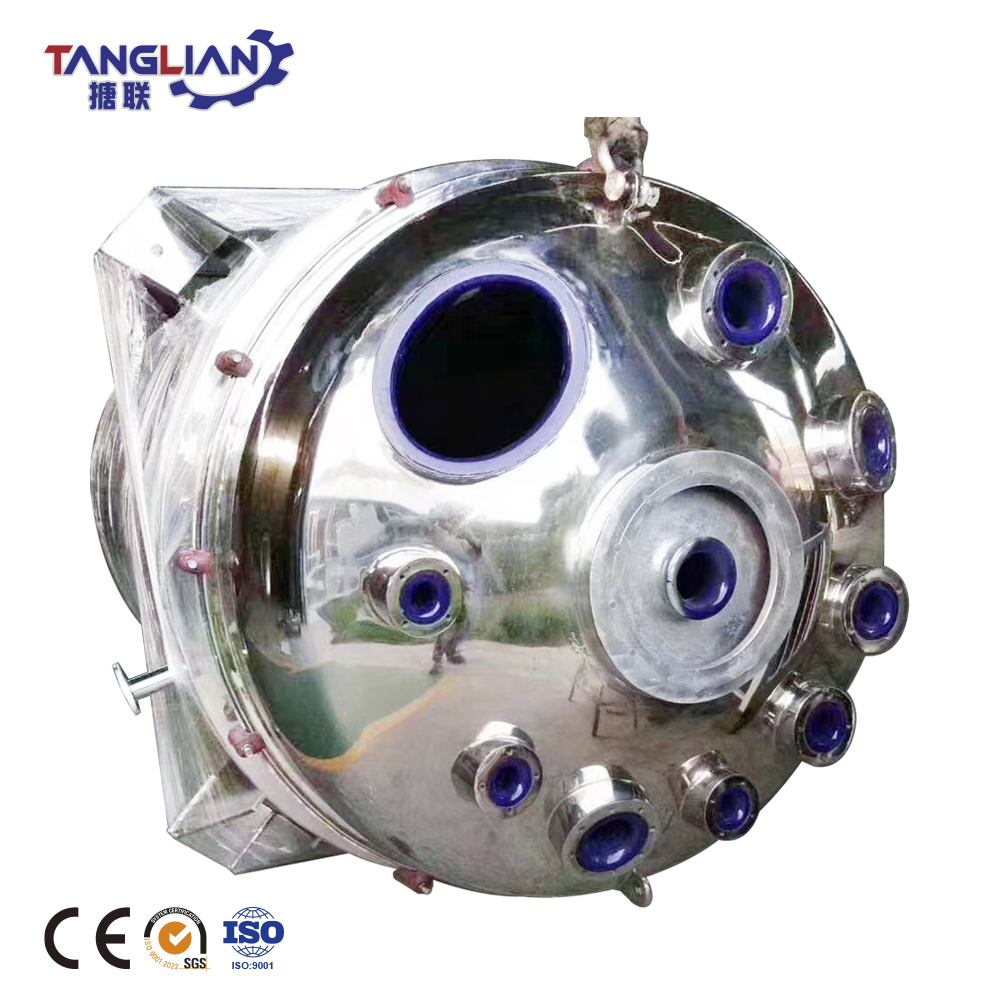

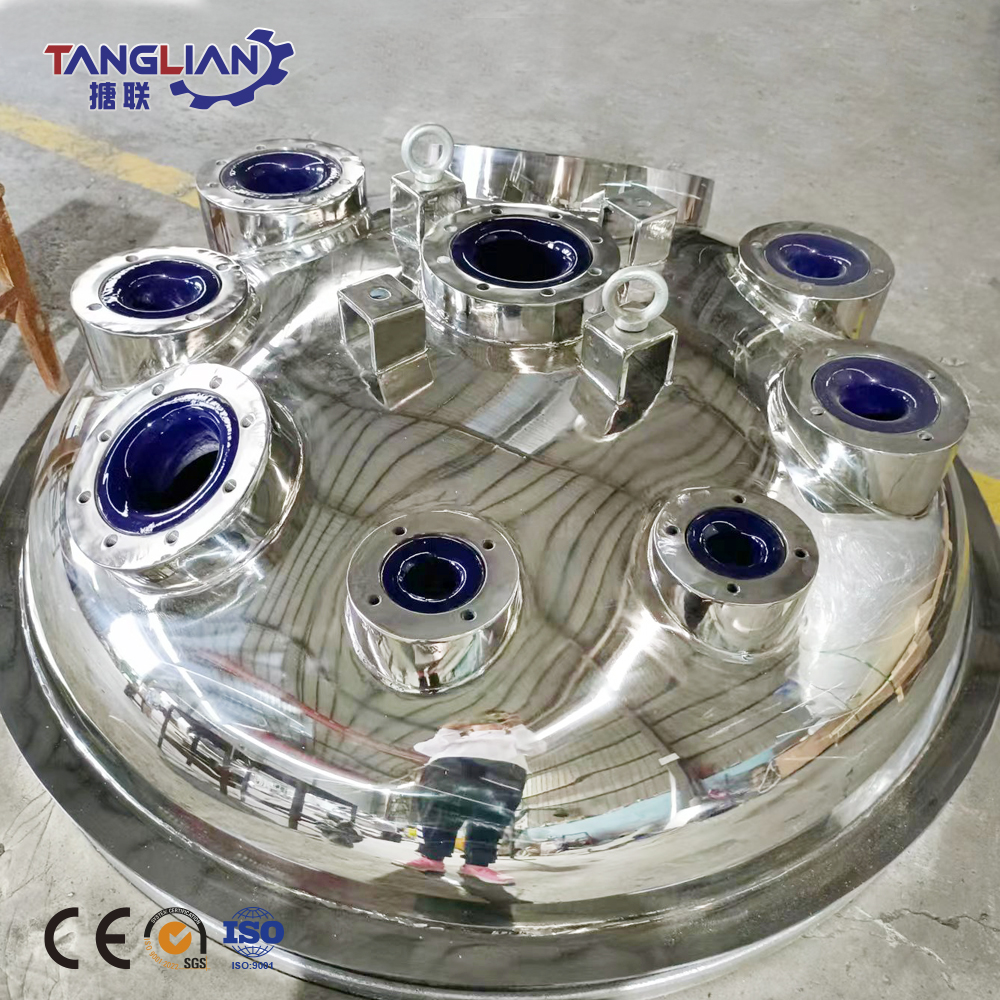

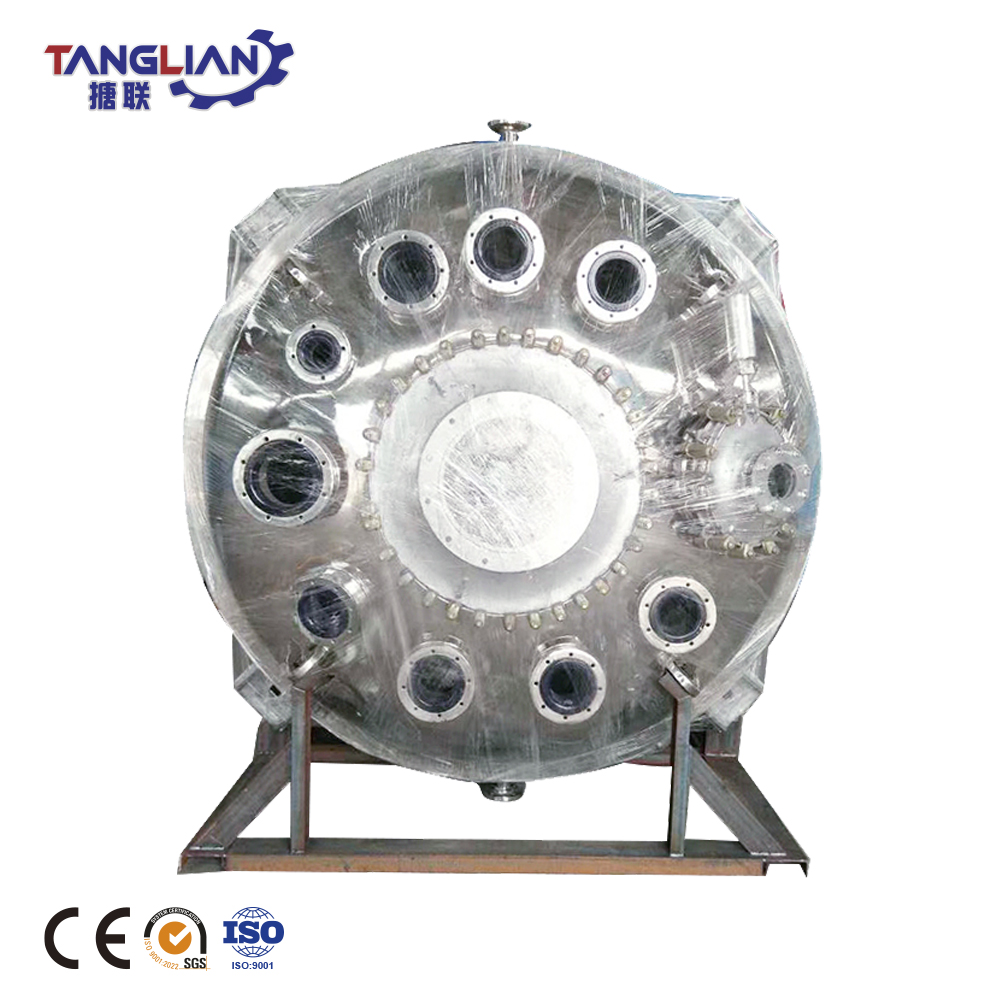

carbon steel glass lined reactor covered by stainless steel

carbon steel glass lined reactor covered by stainless steel

INQUIRY

Model No.:50L-50000L，Can be customized according to drawings.
K50L	k100L	K200L	K300L	K500L	K1000L	K1500L	K2000L	K3000L
K5000L	K6300L	K8000L	K10000L	F10000L	K12500L	F12500L	F16000L	F20000L
F30000L	F50000L

	INNER VESSEL	JACKET
MATERIAL	Carbon Steel with Glass Linning	Carbon Steel
DESIGN PRESSURE（Mpa）	-0.1 / 6	0 / 0.6
DESIGN TEMPERATURE（℃）	-19 / 200	-19 / 200
WORKING TEMPERATURE（℃）	-19 / 200
GLASS LINED THICKNESS（mm）	0.8-2.0
HIGH VOLTAGE（Kv）	20
RESISTANCE TO SHARP TEMPERATURE VARIATION（℃）	COOL SHOCK 110，HOT SHOCK 120

covered by stainless steel	SS30408
min thickness	3mm
surface drinding	mirror grinding


XQ (3).jpg

Products can be customized to meet customers’ needs in the aspects of structural design, function, capacity, and various working conditions ,etc.
A series of examinations will be taken before the final fabrication of the product are ready to put into batch production, inspection can be made any time before the final fabrication is ready.
We will provide instant service from the design drawings to after sales constantly upon the feedback from users.
The desgin department provide professional drawings for evaluating feasibility and practicability in the perspective of users.

XQ (14).jpg

Shandong Tanglian was established in 1998 and is located in Zibo, the hometown of glass lining in China. It is a well-known chemical equipment manufacturer in northern China, specializing in the production of glass-lined reactors, stainless steel reactors, carbon steel reactors and PTFE sparied, PP lining, alloy composite reactor, agitator, storage tank, heat exchanger, shell and tube condenser, tower, film evaporator, vacuum rotary dryer, high pressure laboratory reactor, full-set chemical automatic equipment .The products produced by our company are supplied to the whole china and dozens of foreign countries around the world , and are widely used in petroleum, chemical, pharmaceutical, dye, mining and metallurgy and other fields. The supply objects include enterprises (Qilu Pharmaceuticals, China Wanda, etc.), scientific research institutes (Qingdao Research Institute of Chinese Academy of Sciences, China Sinochem Research Institute, etc.), institutions of higher learning (Harbin Institute of Technology, Dalian Maritime University, etc.), etc.
