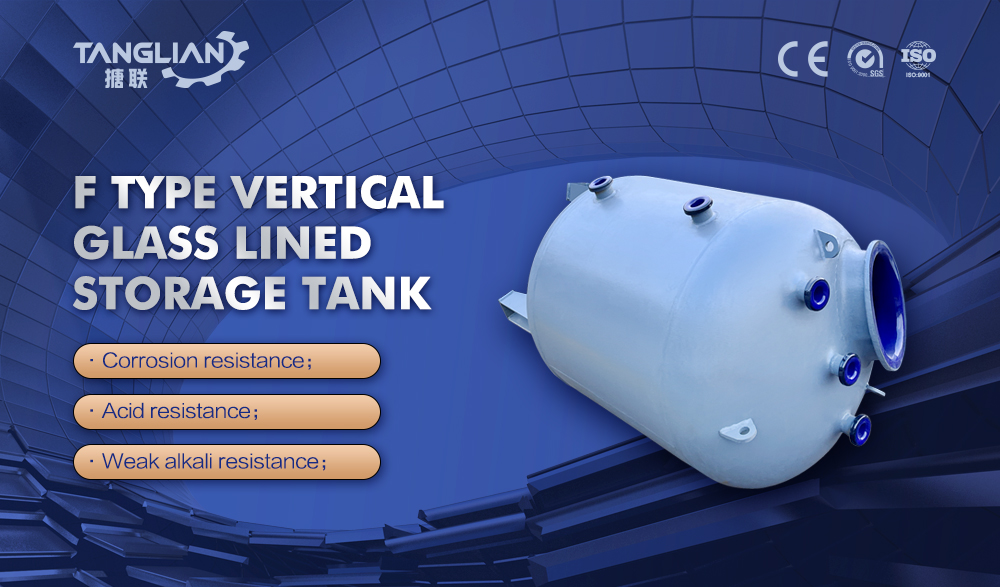

F type glass lined chemicals storage tank

INQUIRY




Glass lined steel tank Introduction

chemical equipment receiving tank Glass Lined Tanks(also called metering tank), is a kind of glass lined equipment for storing acid, alcohol, gas and other dangerous raw materials, divided intoglass lined steel tank, vertical open type glass lined receiving tank (i.e. K type glass lined storage tank), vertical closed type glass lined storage tank (i.e. F type glass lined storage tank), used as vacuum, can be configured with jacket for heating and insulation of the corresponding raw materials, used in petroleum, chemical, grain and oil, food, fire fighting, transportation, metallurgy and other industries.

>Glass lined storage tank

Technical Parameters

	Specification
MATERIAL	Carbon Steel with Glass Linning
DESIGN PRESSURE（Mpa）	Atmospheric pressure
DESIGN TEMPERATURE（℃）	-19 / 200
GLASS LINED THICKNESS（mm）	0.8-2.0

Main Dimensions of Vertical K Type Glass Lined Steel Tank (200-2000L)

NOMINAL VOLUME (L)	ACTUAL VOLUME (L)	D (mm)	D1 (mm)	D2 (mm)	H (mm)	H1 (mm)	H2 (mm)	PN 0.25 Mpa	PN 0.6 Mpa	WEIGHT (Kg)
K200	240	600	360	420	1615	300	965	BM12/28	AM12/36	236
K300	360	700	420	490	1745	345	1070	BM12/36	AM16/32	408
K500	600	800	480	560	2130	380	1370	BM12/40	AM16/36	544
K1000	1200	1000	600	700	2350	430	1770	BM16/40	AM16/44	915
K2000	2400	1300	780	910	2610	505	1970	BM16/56	AM20/52	1400

Nozzle Size of Vertical K Type Glass Lined Storage Tank (200-2000L)

NOMINAL VOLUME(L)	a	b	c	d	g	h
K200	125	70	70	70	70	-
K300	125	80	70	70	80	-
K500	150	80	80	70	80	-
K1000	150	80	80	80	80	-
K2000	400×300	100	80	80	100	80

Process Flow

glass line reactor.jpg

chemical equipment receiving tank Glass Lined Tanks Advantages

Vertical K type Corrosion resistance industrial enamel Storage Tank is separated by body and cover, connected by gasket and tank card in the middle, open type is more convenient to disassemble, this type of glass lined receiver comes with relatively small volume. However, it offers exceptional corrosion resistance, sheer reliability, stable lining and long service life.standard models are K200L, K300L, K500L, K1000L, K2000L. (Processing according to the user's drawing)
